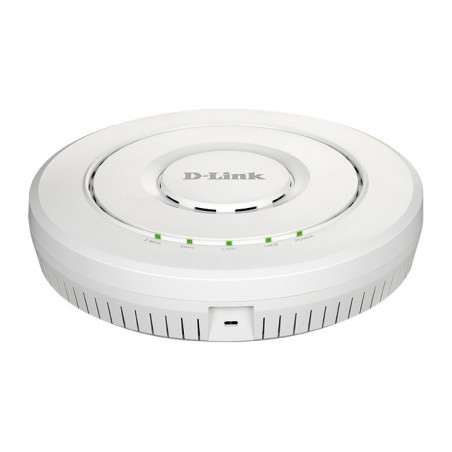

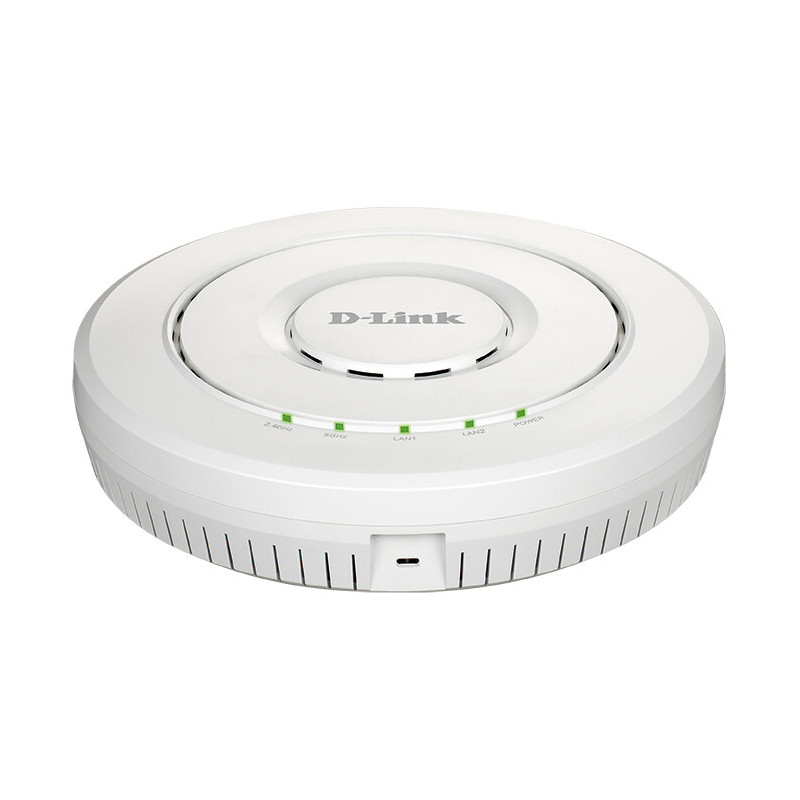

D-Link DWL-8620AP point d'accès réseaux locaux sans fil 2533 Mbit/s Blanc Connexion Ethernet, supportant l'alimentation via c
523,52 €
TTC
D-Link DWL-8620AP, 2,4 GHz, 5 GHz, 2533 Mbit/s, AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, 10,100,1000 Mbit/s
Catalogue produits
Mettez dans votre panier vos produits, pour une demande de devis précis et personnalisé.
Un devis personnalisé
Recevez sous 2 heures un devis personnalisé par nos équipes avec les meilleurs prix du moment.
Livraison
nous planifions la livraison dans les meilleurs délais sous environ 48H
Enjoy Faster Business with Wave 2
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.
Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.
It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.
Increase Network Efficiency
The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.
MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.
Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.
Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.
Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.
When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.
This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.
Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.
Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.
802.11k Fast Roaming
Allows the wireless client to roam seamlessly between access points.
802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.
Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.
Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.
It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.
Increase Network Efficiency
The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.
MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.
Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.
Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.
Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.
When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.
This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.
Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.
Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.
802.11k Fast Roaming
Allows the wireless client to roam seamlessly between access points.
802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.
Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
4999266
Fiche technique
- Tension d'entrée AC
- 12 V
- Poids du paquet
- 1,47 kg
- Hauteur du colis
- 94 mm
- Profondeur du colis
- 296 mm
- Largeur du colis
- 295 mm
- Système de répartition sans fil automatique (WDS)
- Oui
- Poids brut du casier d’expédition (interne)
- 8,2 kg
- Qualité de service (QoS)
- Oui
- Matériau du boîtier/corps
- Plastique
- Poids net du colis d'expédition
- 7,33 kg
- Multimédia Wi-FI (WWM)/(WME)
- Oui
- Poids brut de palette (air)
- 222,3 kg
- Longueur de palette
- 110 cm
- Connexion Ethernet, supportant l'alimentation via ce port (PoE)
- Oui
- Casiers principaux (externes) par palette (air)
- 24 pièce(s)
- Largeur de palette
- 120 cm
- Quantité par palette (air)
- 120 pièce(s)
- Produit par casier d’expédition (interne)
- 5 pièce(s)
- Hauteur de la palette (air)
- 144,7 cm
- Longueur du carton d'expédition
- 44,9 cm
- Poids brut de palette (mer)
- 272 kg
- Poids
- 790 g
- Casiers principaux (externes) par palette (mer)
- 30 pièce(s)
- Largeur du carton d'expédition
- 31,2 cm
- Produits par palette (mer)
- 150 pièce(s)
- Hauteur du carton d'expédition
- 32,8 cm
- Hauteur de la palette (mer)
- 177,5 cm
- Code du système harmonisé
- 85176990
- Nombre de port ethernet LAN (RJ-45)
- 2
- Standards réseau
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
- Taux de transfert de données (maximum)
- 2533 Mbit/s
- Profondeur
- 220 mm
- Entrée DC
- Oui
- Algorithme de sécurité soutenu
- AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
- Guide de démarrage rapide
- Oui
- Largeur
- 220 mm
- Hauteur
- 47 mm
- Quantité
- 1 pièce(s)
- Certification
- CE
- Protocoles de gestion
- SNMP v1/v2c/v3
- Direction de la bande
- Oui
- Airtime Fairness (ATF)
- Oui
- Quantité d'antenne
- 2
- Niveau de gain de l'antenne (max)
- 4 dBi
- Filtrage d'adresse MAC
- Oui
- Type d'antenne
- Interne
- MIMO (entrées multiples, sorties multiples)
- Oui
- Courant d'entrée
- 2.5 A
- LAN Ethernet : taux de transfert des données
- 10,100,1000 Mbit/s
- Taux d'humidité relative (stockage)
- 5 - 95%
- Nombre de prises en charge de SSID
- 32
- Type de direction d'antenne
- Omni-directionnel
- Taux d'humidité de fonctionnement
- 0 - 40%
- Température hors fonctionnement
- 10 - 90 °C
- Itinérance rapide
- Oui
- Consommation (max)
- 24,24 W
- Température d'opération
- -20 - 65 °C
- Sélection automatique du canal
- Oui
- Couleur
- Blanc
- Interface de ligne de commande (CLI - Command-line interface)
- Oui
- Débit de transfert des données maximum (5 GHz)
- 1733 Mbit/s
- Débit de transfert des données maximum (2,4 GHz)
- 800 Mbit/s
- 5 GHz
- Oui
Yes - 2,4 GHz
- Oui
Yes
Références spécifiques
- EAN-13
- 790069441219
