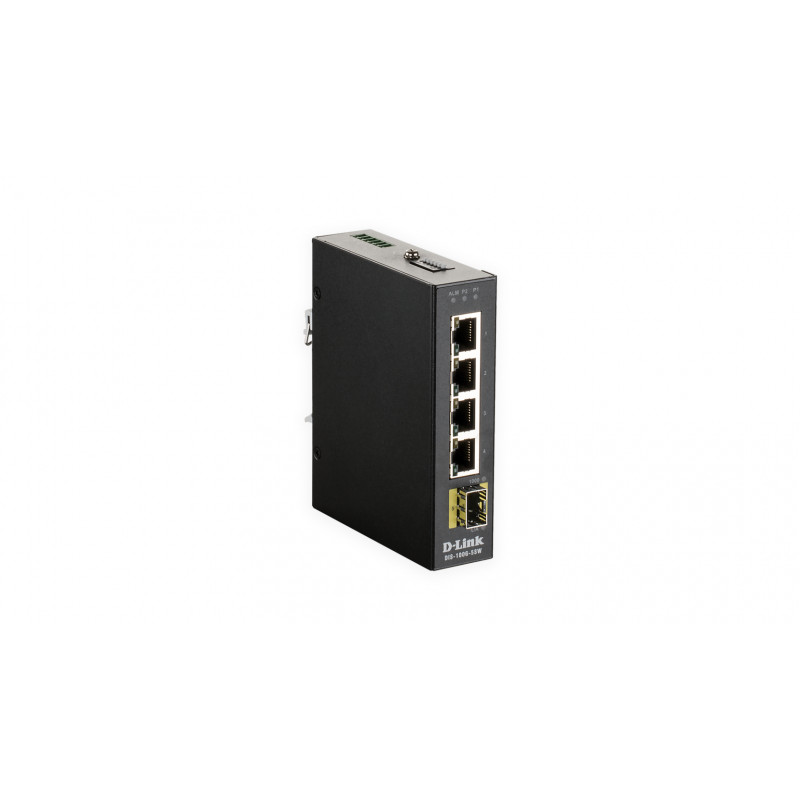

D-Link DIS‑100G‑5SW Non-géré L2 Gigabit Ethernet (10/100/1000) Noir
254,88 €
TTC
D-Link DIS‑100G‑5SW, Non-géré, L2, Gigabit Ethernet (10/100/1000), Full duplex, Montage mural
Catalogue produits
Mettez dans votre panier vos produits, pour une demande de devis précis et personnalisé.
Un devis personnalisé
Recevez sous 2 heures un devis personnalisé par nos équipes avec les meilleurs prix du moment.
Livraison
nous planifions la livraison dans les meilleurs délais sous environ 48H
The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.
Durable, Reliable, and Efficient
The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.
Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.
Power over Ethernet Support
The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
Green Ethernet Technology
The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during
periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
Durable, Reliable, and Efficient
The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.
Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.
Power over Ethernet Support
The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
Green Ethernet Technology
The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during
periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
4675688
Fiche technique
- Dispositifs de protection électrique
- Sur-courant, Inversion de polarité
- Poids du paquet
- 500 g
- Hauteur du colis
- 83 mm
- Profondeur du colis
- 178 mm
- Largeur du colis
- 140 mm
- Quantité par palette (air)
- 360 pièce(s)
- Largeur de palette
- 110 cm
- Hauteur de la palette (air)
- 136,5 cm
- Produit par casier d’expédition (interne)
- 10 pièce(s)
- Poids brut de palette (mer)
- 321,6 kg
- Longueur du carton d'expédition
- 44 cm
- Casiers principaux (externes) par palette (mer)
- 54 pièce(s)
- Largeur du carton d'expédition
- 30,5 cm
- Hauteur du carton d'expédition
- 20,5 cm
- Poids
- 295 g
- Produits par palette (mer)
- 540 pièce(s)
- Code du système harmonisé
- 85176990
- Soutien 10G
- Non
- Hauteur de la palette (mer)
- 198 cm
- Standards réseau
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Full duplex
- Oui
- Voyants
- LAN, Énergie
- Capacité de commutation
- 10 Gbit/s
- Profondeur
- 29,1 mm
- Type de commutateur
- Non-géré
- Largeur
- 112,2 mm
- Support à la multidifusion
- Oui
- Hauteur
- 89,4 mm
- Gestion du trafic
- Oui
- Consommation électrique
- 2,74 W
- Certification
- IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
- Dissipation thermique
- 12,18 BTU/h
- Poids brut du casier d’expédition (interne)
- 5,64 kg
- Connexion Ethernet, supportant l'alimentation via ce port (PoE)
- Non
- Poids brut de palette (air)
- 220 kg
- Poids net du colis d'expédition
- 5 kg
- Voltage d'entrée DC
- 12 - 58 V
- Casiers principaux (externes) par palette (air)
- 36 pièce(s)
- Longueur de palette
- 120 cm
- Négociation automatique
- Oui
- Contrôle Broadcast storm
- Oui
- Connecteur de fibre optique
- LC
- Support de trames étendues (Jumbo Frames)
- Oui
- Trames géantes
- 9000
- Assistance contrôle des flux
- Oui
- Quantité d'emplacements de modules SFP
- 1
- Enregistrement-et-réémission
- Oui
- Taux de transfert
- 7,44 Mpps
- Taux d'humidité relative (stockage)
- 0 - 95%
- Taux d'humidité de fonctionnement
- 5 - 95%
- Montage mural
- Oui
- Température hors fonctionnement
- -40 - 85 °C
- Consommation (max)
- 3,57 W
- Température d'opération
- -40 - 75 °C
- Répertoire MAC
- 2000 entrées
- Auto MDI/MDI-X
- Oui
- Couleur
- Noir
- Montage des rails DIN
- Oui
- Banc de commutateurs
- L2
- Compatibilité électromagnétique
- FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
- Type de port Ethernet RJ-45 de commutation de base
- Gigabit Ethernet (10/100/1000)
- Quantité de ports Ethernet RJ-45 de commutation de base
- 4
Références spécifiques
- EAN-13
- 790069437892
