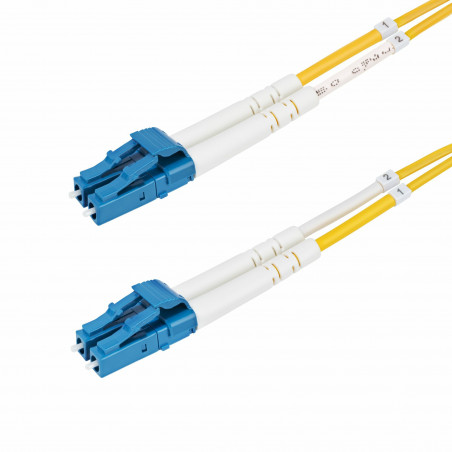

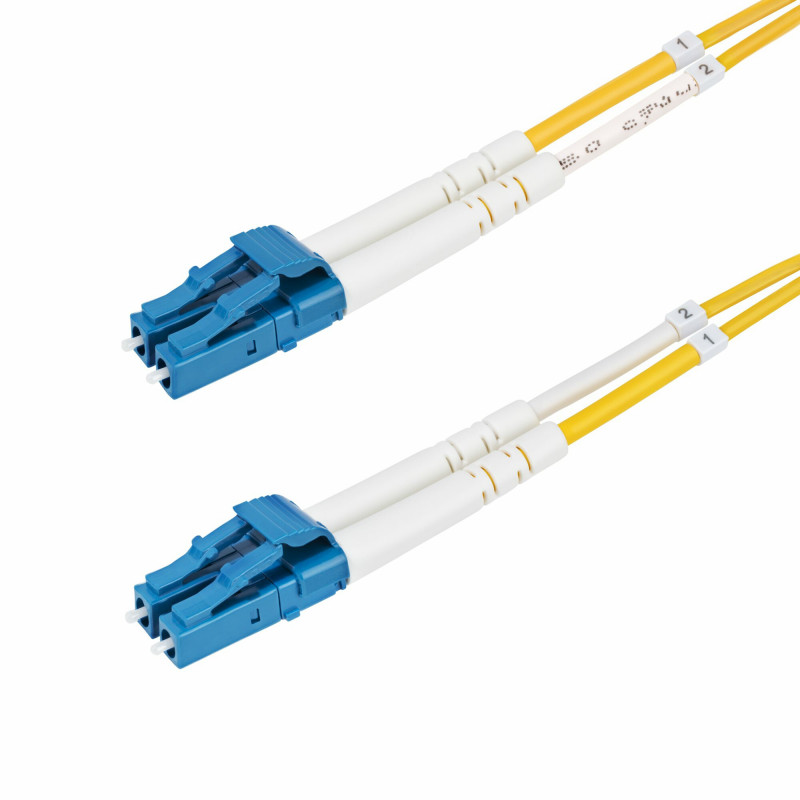

StarTech.com 40m (131ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Inserti

59,99 €
TTC
StarTech.com 40m (131ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 100G, LSZH Fiber Jumper Cord
Quantité
Sur devis exclusivement

  Catalogue produits

Mettez dans votre panier vos produits, pour une demande de devis précis et personnalisé.

  Un devis personnalisé

Recevez sous 2 heures un devis personnalisé par nos équipes avec les meilleurs prix du moment.

  Livraison

nous planifions la livraison dans les meilleurs délais sous environ 48H

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

OS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

The StarTech.com Advantage
STARTECH
9914341

Fiche technique

Rayon de courbe
1 cm
Poids du paquet
286,4 g
Hauteur du colis
18 mm
Profondeur du colis
280 mm
Largeur du colis
280 mm
Taux de transfert des données
10 Gbit/s
Atténuation (max)
0,35 dB/km
Quantité
1 pièce(s)
Longueur du carton principal
380 mm
Largeur du carton principal
380 mm
Hauteur du carton principal
280 mm
Quantité par carton principal
24 pièce(s)
Full duplex
Oui
Type de câble
LC/UPC
Diamètre du câble
2 mm
Matériau du manteau
LSZH (Low smoke zero halogen ), Polypropylène
Perte d'insertion
0,3 dB
Perte en retour
55 dB
Longueurs d'ondes prises en charge
1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Structure du mode de fibre
Monomode
Diamètre du revêtement
125 µm
Diamètre principal
9 µm
Type de polisseur de connecteur
UPC
Genre de connecteur 1
Male
Genre de connecteur 2
Male
Température hors fonctionnement
-20 - 60 °C
Température d'opération
-20 - 60 °C
Longueur de câble
40 m
Type de fibre optique
OS2
Couleur
Jaune
Connecteur 2
LC
Connecteur 1
LC
Conformité à la durabilité
Oui

Références spécifiques

EAN-13
0065030901819
