Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
search
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz
  • Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz

Gigabyte GB-BMCE-4500C (rev. 1.0) Noir N4500 1,1 GHz

233,51 €
TTC

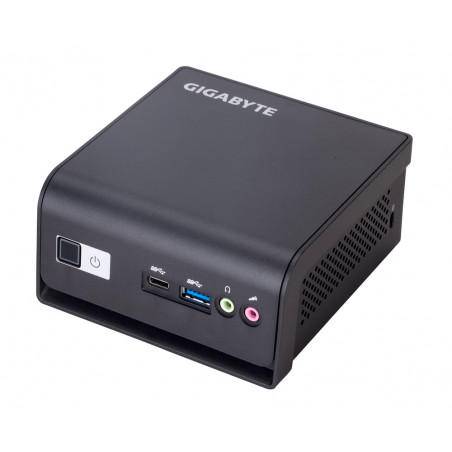

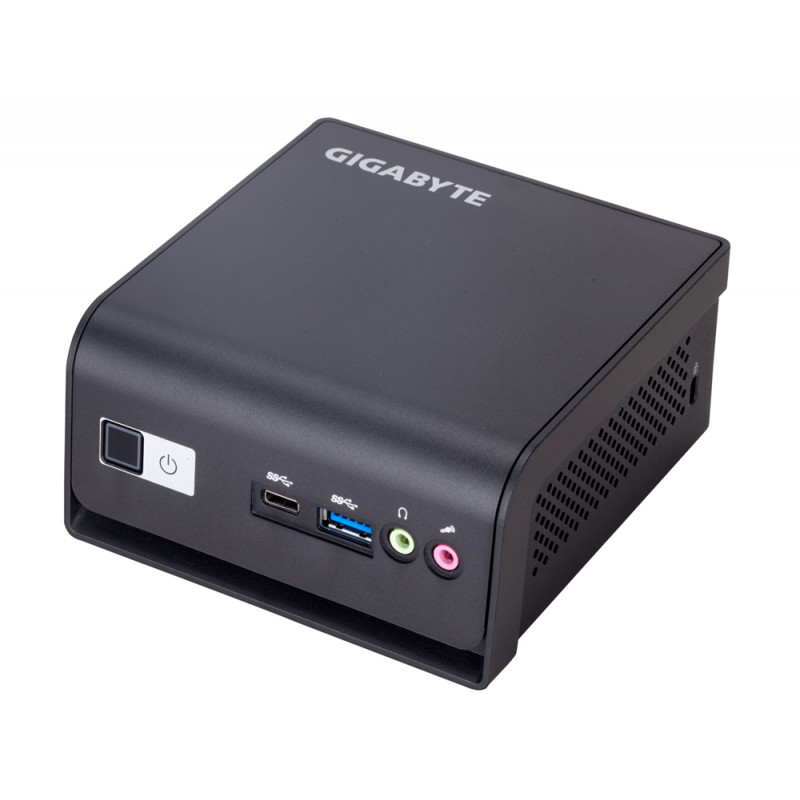

Gigabyte GB-BMCE-4500C (rev. 1.0), Mini PC type barebone, Ethernet/LAN
Quantité
Sur devis exclusivement

  Catalogue produits

Mettez dans votre panier vos produits, pour une demande de devis précis et personnalisé.

  Un devis personnalisé

Recevez sous 2 heures un devis personnalisé par nos équipes avec les meilleurs prix du moment.

  Livraison

nous planifions la livraison dans les meilleurs délais sous environ 48H

BRIX Latest Intel 10nm Pentium Silver/ Celeron Processor Scenarios

Powerful Commercial Applications
- Factory testing machine
- Bank ATM system
- Gaming equipment
- Vending machine
- Security system

At the Office
- Meeting room device
- Workstation
- Studio
- Freelance office space

The Perfect Compact Home PC
- Living room
- Bedroom
- Kitchen
- Study

Simpler and Smarter Digital Life
- Shopping mall signboard
- Scoreboard system
- Split-flap display
- Indoor / Outdoor LED Display

Vertical Markets
- School
- University computer labs
- Libraries
- Hospital / Medical equipment
- Governmental

Intel® Pentium® Silver and Celeron® Processor
BRIX use the newest Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.

Latest Intel 10nm Pentium Silver/ Celeron Processor Performance
Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.

Connecting the Future
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.

GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth users to easily connect mobile devices.

Support HDMI 2.0b / DP 1.4b Dual Output
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation.

This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

GIGABYTE Intel 10nm Pentium Silver/ Celeron Processor Scenarios series support up to 2 independent displays, through its HDMI + mini Display ports, with 4K resolution and HDR 10 support. It gives users the flexibility to configure their any environment without any limitation.

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.

- PCI-e SSD for FAST BOOT, snapping response
- 2.5” SSD/HDD for low cost large capacity storage

DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.

VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.
GIGABYTE
6998528

Fiche technique

Tension sortie de l'adaptateur secteur
19 V
Courant de sortie de l'adaptateur secteur
2,1 A
Tension d'entrée AC
100 - 240 V
Sortie jack haut-parleur/ casque
1
Entrée jack microphone
Oui
Quantité de ports de type C USB 3.2 Gen 1 (3.1 Gen 1)
1
Quantité de ports de type A USB 3,0 (3,1 Gen 1)
3
Intel® 64
Oui
Bouton marche/arrêt intégré
Oui
Mémoire interne maximale
16 Go
Technologie SpeedStep évoluée d'Intel
Oui
Adaptateur secteur fourni
Oui
Intel® VT-x avec Extended Page Tables (EPT)
Oui
Technologie Intel® Virtualization Technology pour les E/S dirigées (VT-d)
Oui
Type d'alimentation d'énergie
Adaptateur CA externe
Technologie Trusted Execution d'Intel®
Non
Profondeur
116,2 mm
États Idle
Oui
Famille d'adaptateur graphique
Intel
Largeur
103 mm
Technologie de vitalisation d'Intel® (VT-x)
Oui
Carte graphique intégrée
Oui
Hauteur
56,2 mm
Nombre de port ethernet LAN (RJ-45)
1
Type de refroidissement
Passif
Configuration CPU (max)
1
Wifi
Oui
Nombre d'affichages pris en charge
2
Code du système harmonisé
84713000
Entrée DC
Oui
Prise en charge de la mémoire vitesse d'horloge
2933 MHz
Bluetooth
Oui
Modèle du Bluetooth
4.2
Contrôleur de réseau local (LAN)
Realtek RTL8111HS
Enveloppe thermique (TDP, Thermal Design Power)
6 W
Version de DisplayPort
1.2a
Quantité de ports HDMI
1
Norme Wi-Fi
Wi-Fi 5 (802.11ac)
Nombre de logements pour mémoire
1
Type de support (slot)
SO-DIMM
Cache L3
4 Mo
Nombre d'unités de stockage pris en charge
2
Quantité de Mini DisplayPorts
1
Version HDMI
2.0b
Modèle d'adaptateur graphique discrêt
Indisponible
Modèle d'adaptateur graphique à bord
Intel® UHD Graphics 605
Température hors fonctionnement
-20 - 60 °C
Intégré dans le processeur
Oui
Type d'emplacement de verrouillage de câble
Kensington
Température d'opération
0 - 35 °C
Port de câble antivol
Oui
Prise en charge du système d'exploitation Windows
Windows 10 x64
Fréquence du processeur
1,1 GHz
Fréquence du processeur Turbo
2,8 GHz
Nombre de threads du processeur
2
Nombre de coeurs de processeurs
2
Couleur
Noir
Norme VESA
75 x 75,100 x 100 mm
Montage VESA
Oui
Tailles de disque de stockage pris en charge
2.5,M.2
Types de lecteurs de stockage pris en charge
HDD & SSD
Type de produit
Mini PC type barebone
Modèle de processeur
N4500
Ethernet/LAN
Oui
Yes
Famille de processeur
Intel® Celeron®
Fabricant de processeur
Intel

Références spécifiques

EAN-13
4719331600860
