Gigabyte GB-BMCE-5105 (rev. 1.0) Noir N5105 2,8 GHz

261,53 €
TTC

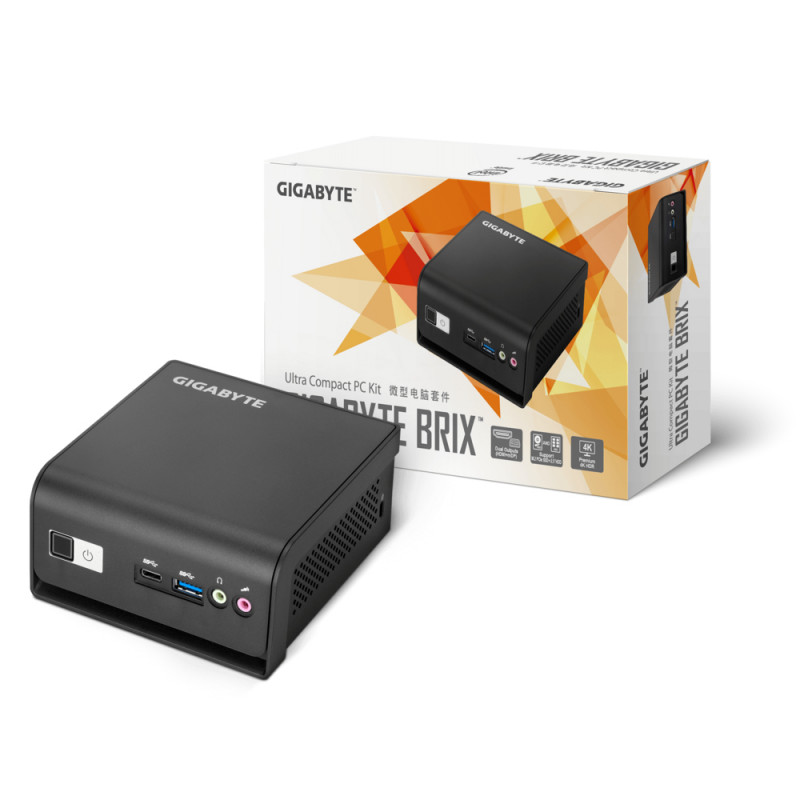

Gigabyte GB-BMCE-5105 (rev. 1.0), Mini PC type barebone, DDR4-SDRAM, Série ATA III, Ethernet/LAN, Wi-Fi 5 (802.11ac)
Quantité
Sur devis exclusivement

  Catalogue produits

Mettez dans votre panier vos produits, pour une demande de devis précis et personnalisé.

  Un devis personnalisé

Recevez sous 2 heures un devis personnalisé par nos équipes avec les meilleurs prix du moment.

  Livraison

nous planifions la livraison dans les meilleurs délais sous environ 48H

Intel® Pentium® Silver and Celeron® Processor
BRIX use the newest Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.

Latest Intel 10nm Pentium Silver/ Celeron Processor Performance
Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.

DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.

VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.
GIGABYTE
6998526

Fiche technique

Tension sortie de l'adaptateur secteur
19 V
Courant de sortie de l'adaptateur secteur
2,1 A
Tension d'entrée AC
100 - 240 V
Sortie jack haut-parleur/ casque
1
Entrée jack microphone
Oui
Quantité de ports de type C USB 3.2 Gen 1 (3.1 Gen 1)
1
Quantité de ports de type A USB 3,0 (3,1 Gen 1)
3
Intel® VT-x avec Extended Page Tables (EPT)
Oui
Port DVI
Oui
Technologie Intel® Virtualization Technology pour les E/S dirigées (VT-d)
Oui
Technologie Trusted Execution d'Intel®
Non
États Idle
Oui
Technologie de vitalisation d'Intel® (VT-x)
Oui
Bouton marche/arrêt intégré
Oui
Nombre de port ethernet LAN (RJ-45)
1
Entrée DC
Oui
Type d'alimentation d'énergie
Adaptateur CA externe
Carte graphique intégrée
Oui
Configuration CPU (max)
1
Famille d'adaptateur graphique
Intel
Prise en charge de la mémoire vitesse d'horloge
2933 MHz
Profondeur
112,6 mm
Types de mémoire pris en charge
DDR4-SDRAM
Largeur
119,4 mm
Hauteur
46,8 mm
Wifi
Oui
Code du système harmonisé
84713000
Mémoire interne maximale
16 Go
Intel® 64
Oui
Bluetooth
Oui
Technologie SpeedStep évoluée d'Intel
Oui
Enveloppe thermique (TDP, Thermal Design Power)
10 W
Norme Wi-Fi
Wi-Fi 5 (802.11ac)
Standards wifi
Wi-Fi 5 (802.11ac)
Quantité de ports HDMI
1
Nombre de logements pour mémoire
1
Type de support (slot)
SO-DIMM
Quantité de Mini DisplayPorts
1
Version HDMI
2.0
Modèle d'adaptateur graphique à bord
Intel® UHD Graphics 605
D'interface pour unité de stockage
Série ATA III
Température hors fonctionnement
-20 - 60 °C
Intégré dans le processeur
Oui
Type d'emplacement de verrouillage de câble
Kensington
Température d'opération
0 - 35 °C
Port de câble antivol
Oui
Haut-parleurs intégrés
Non
Fréquence du processeur
2,8 GHz
Nombre de coeurs de processeurs
4
Couleur
Noir
Norme VESA
75 x 75 mm
Montage VESA
Oui
Tailles de disque de stockage pris en charge
2.5"
Types de lecteurs de stockage pris en charge
HDD & SSD
Type de produit
Mini PC type barebone
Modèle de processeur
N5105
Ethernet/LAN
Oui
Yes
Famille de processeur
Intel® Celeron®
Fabricant de processeur
Intel

Références spécifiques

EAN-13
4719331600853
